TVS Transient-voltage-suppression diode

Information of TVS

The transient Voltage Suppressor, referred to as TVS, the TVS operates by shunting excess current when the induced voltage exceeds the avalanche breakdown potential. It is a clamping device, suppressing all over voltages above its breakdown voltage. It automatically resets when the overvoltage goes away, but absorbs much more of the transient energy internally than a similarly rated crowbar device.

The selection tips of TVS

1. The Vrwm of TVS should be more than 10% working voltage and tolerance, that protect the Max DC or continuous working voltage of circuits. If the Vrwm is too low, the device will affect the normal work of the circuits because of the snow slide or reverse electric leakage. The current will be divided in the parallel circuit and the voltage will be divided in the serial circuit.

2. The VC of TVS should be less than the damaged voltage of protecting circuits.

3. The Ppp of TVS should be more than the possible peak pulse of protecting circuits.

4. The Ipp of TVS should be more than the surge current of transient circuit.

5. For the lightning protection of data interface circuit, the semiconductor ESD of low capacitance is better.

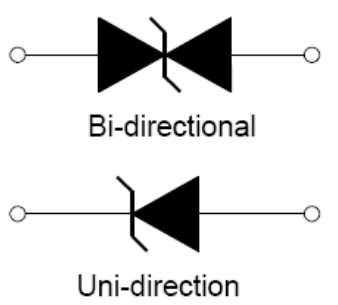

6. The selection of TVS’ polarity and encapsulation structure should based the application. For the AC circuit, the dual polarity TVS is better, and for the Multi-line protection, the ESD array of semiconductor is better.

Part Number	Power(W) All - 174 200 400 600 1000 1500 2100 3000 3600 5000 6000 6600 8000 12000 15000 30000 Filter Reset	Vrwm(V) All 3.3 5 5.8 6 6.4 6.5 7 7.02 7.5 7.78 7.8 8 8.5 8.55 8.6 9 9.4 10 10.2 11 11.1 12 12.8 13 13.6 14 15 15.3 16 17 17.1 18 18.8 20 20.5 22 23.1 24 25.6 26 28 28.2 30 30.8 32 33 33.3 36 36.8 39 40 40.2 42 43 43.6 45 47.8 48 50 51 53 54 58 58.1 60 64 64.1 66 70 70.1 71 72 75 76 77.8 78 80 82.4 84 85 85.5 90 94 96 100 102 108 110 111 120 128 130 132 136 140 144 145 150 154 156 160 168 170 171 180 185 190 198 200 208 210 214 216 220 237 240 250 256 258 260 270 280 288 300 342 350 376 380 400 408 430 434 440 450 459 460 467 477 486 495 512 530 1600 Filter Reset	Vbr(V) All 10 10.4 10.5 11.1 11.4 12.2 12.3 12.4 13.3 14.3 14.4 15.2 15.6 16 16.7 17.1 17.8 18.9 19 20 20.9 22.2 22.8 24.4 25.7 26.7 27 28.5 28.9 31.1 31.28 31.4 31.9 32 33.2 33.3 33.5 34.2 34.4 35.5 100 100.5 105 107.2 111 113.9 114 120.6 122 124 133 134 137 143 144 147.4 152 155 158 160.8 162 167 167.6 171 174.3 178 178.7 179 180 187.7 189 189.9 190 200 201 201.1 209 211 221.2 223 224 231 233 237 241.3 246 250 268 268.1 277 279 279,00 282 285 288.2 289 290.4 301.6 311 312.8 318 321.7 332 335 36..7 4.1 4.22 4.6 6 6.4 6.45 6.5 6.67 6.7 7 7.1 7.13 7.2 7.22 7.37 7.78 7.79 7.8 7.98 8.3 8.33 8.65 8.7 8.89 8.9 9.21 9.4 9.44 9.5 9.83 36.7 36.9 37.1 40 40.2 40.6 40.9 43.6 44.4 44.7 46.9 47.8 48 48.5 50 50.3 53.2 53.3 53.6 56.7 57 58.9 60 60.3 64 64.4 64.6 64.8 66.7 67 71.1 71.3 71.5 72 73.7 77.8 77.9 78.2 79.3 80.4 83.3 83.8 85 86.5 86.7 87.1 88.8 93.8 94.4 95 380 391 401 418 440 447 456 485 492 503 503.5 513 522.5 560 570 Filter Reset	Vc(V) All 7.3 8.8 9.2 10.3 10.5 11.2 11.3 11.6 12 12.1 12.9 13.4 13.6 14.4 14.5 15.4 15.6 16.7 17 18.2 19..9 19.9 21.2 21.4 21.5 22 22.5 23.2 23.3 24.4 25.2 25.5 26 27 27.6 27.7 28 28.1 29.2 29.3 30.3 30.6 30.9 32.4 33.2 34.3 35.5 37.1 37.5 38 38.9 40.7 41.4 42.1 44 45.4 45.7 47.5 48.4 49.9 50 50.7 51.4 53.3 53.9 54.7 55.2 58 58.1 58.5 59.3 59.8 61.8 64.5 64.8 65.8 67.2 69.4 69.8 70.1 72 72.7 72.8 73 77 77.4 77.7 81.6 82.4 82.9 85 86.4 87.1 87.7 90 91.4 92 92.4 93.6 93.8 96.8 97.4 102 103 104 104.2 107 109 110 111.5 113 113.6 114 119.4 120 121 122 125 126 126.1 129 137 137.6 139.2 140 145.6 146 146.4 150 152 156 161.3 162 165 165.6 175.2 177 178.6 179 192.3 193 194.4 207 208.3 209 213 219 223.2 224 230 233.4 234 241.9 243 245 246 252.6 258.6 259 260 262 272.4 272.7 274 275 288.5 290 290.4 292 307 308 310 319.1 319.8 324 328 329.2 337 340 344 348.6 349.5 352.5 356 371.1 384.6 387 405 410 414 414.4 416 416.7 425 436.2 454.5 464 469.9 482 486 520 548 567 602 625 648 658 698 713 725 740 750 760 828 1600 Filter Reset	Ipp(A) All 0.5 0.53 0.54 0.55 0.57 0.6 0.61 0.7 0.75 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5 5.1 5.2 5.3 5.4 5.5 5.6 5.7 5.8 5.9 6 6.1 6.2 6.3 6.4 6.5 6.6 6.8 6.9 7.1 7.2 7.3 7.5 7.6 7.8 7.9 8 8.2 8.3 8.4 8.5 8.6 8.7 8.8 8.9 9 9.1 9.3 9.4 9.5 9.7 10 10.1 10.2 10.3 10.4 10.7 10.9 11 11.3 11.5 11.6 11.8 11.9 12 12.2 12.3 12.4 13 13.2 13.3 13.4 13.6 13.7 13.8 14.1 14.3 14.4 14.5 14.6 14.7 14.8 14.9 15 15.4 15.5 16 16.1 16.3 16.4 16.5 16.7 16.9 17.2 17.3 17.5 17.7 17.9 18.1 18.2 18.4 18.5 18.6 18.8 19.3 19.4 19.5 19.7 19.9 20.1 20.4 20.5 20.6 20.7 21.4 21.6 21.7 21.8 21.9 22 22.1 22.5 22.6 22.7 23.1 23.2 23.3 23.5 23.8 24 24.2 24.6 24.8 25.3 25.5 25.7 25.8 25.9 26 26.3 26.5 26.7 27.1 27.2 27.5 27.8 27.9 28.2 28.3 28.8 29.1 29.4 30.1 30.2 30.6 30.9 31 31.6 32.1 32.9 33 33.1 33.2 33.3 33.5 33.9 34.2 34.3 34.4 35.3 35.6 35.7 36 36.2 36.3 36.4 36.5 37.3 38.5 38.6 38.8 39 39.1 39.3 39.7 40 40.7 41 41.3 41.4 41.7 42.1 42.3 42.8 43.1 43.2 43.5 44.1 44.3 44.8 45.2 45.5 46.3 46.5 46.6 47.3 48.2 48.6 49.1 49.6 50 50.3 50.4 51.4 51.6 51.7 52.3 52.4 53.1 53.5 53.6 54 54.2 54.4 54.5 55 55.4 56.3 57.2 57.5 57.7 58.3 58.4 58.9 59.6 60.7 61.5 62 62.4 63.8 64.1 64.7 65 65.2 65.9 66.1 66.7 68 68.2 68.8 69.5 69.8 70.5 70.8 71.3 72.1 72.4 72.5 73.6 74 75.4 75.8 77.1 77.5 77.6 78.5 79 80 80.1 82.4 82.5 83.4 84.5 85.3 86 86.1 88.2 88.3 89.3 89.8 90.8 92.6 93 93.6 93.8 93.9 95.1 96.2 97.1 97.4 101 101.8 102 102.3 102.7 103 103.3 103.5 103.7 104.2 108.7 109.1 109.7 110 110.1 110.3 111 112 113.6 114 115.3 115.4 116.3 118.8 119 119.7 122.4 123 123.8 124 124.1 125 128.5 129 129.3 130 132.8 132.9 134 134.4 136 136.4 137.7 138 139.5 140.8 141 144.9 145 145.4 145.6 145.7 147.1 148 150.1 150.8 151.2 152.2 154.3 155 156.8 157 161 163 164.8 165.3 167 169.7 170 171.2 172 172.2 172.91 176.2 176.5 181 181.2 182.1 185.9 186 186.05 190.1 192.3 193 194.3 194.8 198 202.8 203.7 204 204.9 205 205.6 206.54 207.4 208.3 212 215.5 216 216.1 216.3 220.6 225.14 225.3 226 229.5 232.6 233 239 239.1 246.9 247.93 250 251.3 252.0 252 252.5 253 253.8 258.2 263.2 264.32 267.9 269.1 270 270.5 275 275.2 276.1 277.5 280.4 281.4 284 284.5 285.04 288.5 291.3 294 294.1 294.2 297.8 307 308.48 309.9 317.9 324.7 325 326.1 328.2 330.4 331.7 332 338.03 343.2 347 347.2 356.3 363 367 367.6 367.7 370.37 371 385.6 387.6 388 395.3 407 410.96 411 416.7 417 422.5 434.78 440.2 446.4 446.5 448 461.54 463 485.4 485.5 488.7 512.8 513.7 515.4 543.5 544 554.3 576.9 600 603 614.8 Filter Reset	Ir@25°C(μA) All 0.05 0.5 1 2 2.5 5 10 15 20 25 30 35 50 80 100 150 200 250 300 400 500 800 1000 1500 2000 5000 Filter Reset	Package All 175 AK DO-15 DO-201 DO-214AA(SMB) DO-218AB DO-218AB 车用 DO-41 R6 R6 车用 R6车用 SMA SMB SMC SOD-123FL Filter Reset
5KP85A 5KP85CA	5000	85	94.4	137	36.5	1	R6
5KP90A 5KP90CA	5000	90	100	146	34.3	1	R6
5KP100A 5KP100CA	5000	100	100	162	30.9	1	R6
5KP110A 5KP110CA	5000	110	111	177	28.3	1	R6
5KP120A 5KP120CA	5000	120	122	193	26	1	R6
5KP130A 5KP130CA	5000	130	133	209	24	1	R6
5KP150A 5KP150CA	5000	150	144	243	20.6	1	R6
5KP160A 5KP160CA	5000	160	167	259	19.3	1	R6
5KP170A 5KP170CA	5000	170	178	275	18.2	1	R6
5KP180A 5KP180CA	5000	180	189	292	17.5	1	R6
5KP190A 5KP190CA	5000	190	211	310	16.5	1	R6
5KP200A 5KP200CA	5000	200	224	329.2	15.5	1	R6
5KP210A 5KP210CA	5000	210	237	349.5	14.6	1	R6
5KP220A 5KP220CA	5000	220	246	371.1	13.7	1	R6
5KP250A 5KP250CA	5000	250	277	425	12	1	R6
30KP30A 30KP30CA	30000	30	33.5	55.2	543.5	5000	R6
30KP33A 30KP33CA	30000	33	36.9	58.5	512.8	5000	R6
30KP36A 30KP36CA	30000	36	40.2	61.8	485.4	5000	R6
30KP39A 30KP39CA	30000	39	43.6	67.2	446.4	2000	R6
30KP42A 30KP42CA	30000	42	46.9	72	416.7	1000	R6
30KP43A 30KP43CA	30000	43	48	73	411	1000	R6
30KP45A 30KP45CA	30000	45	50.3	77.4	387.6	250	R6
30KP48A 30KP48CA	30000	48	53.6	81.6	367.6	150	R6
30KP51A 30KP51CA	30000	51	57	86.4	347.2	50	R6
30KP54A 30KP54CA	30000	54	60.3	91.4	328.2	20	R6
30KP58A 30KP58CA	30000	58	64.8	92.4	324.7	20	R6
30KP60A 30KP60CA	30000	60	67	102	294.1	15	R6
30KP64A 30KP64CA	30000	64	71.5	104	288.5	10	R6
30KP66A 30KP66CA	30000	66	73.7	107	280.4	2	R6
30KP70A 30KP70CA	30000	70	78.2	109	275.2	2	R6
